SFCP22 - Conductive plastic potentiometer

Robust servo flange potentiometer in 22 mm metal housing with very long lifespan.

Special Features

Very long lifespan 20 mio. rotations
High accuracy
Compact sensor
2 x ball bearings
Optional rear shaft, center tap

The SFCP22 potentiometers in 22 mm metal housing are for applications where precise long-lasting and compact sensors are important.

Facts Fakta

Sensor technology	Conductive Plastic Potentiometer
Effective electrical angle of rotation	max. 320°
Resolution	Nearly infinite
Output signal	Analog
Mounting	Servo flange, Threaded holes
Shaft diameter	6,00 mm, 6,35 mm
Housing diameter: 22 mm	22 mm
Housing depth	min. 20 mm
Electrical connection	Axial, Solder contacts
Protection class	IP40

Documents Dokument

Data sheet SFCP22.pdf
CAD files SFCP22 download

SFCP22 - Conductive plastic potentiometer

Axel Kullmann

Kontakta vår support så hjälper vi dig! Contact our support for advice!

Vi kan besvara era frågor och berätta hur produkterna kan anpassas efter era precisa behov We can answer your questions and describe how our products can be modified to fit your exact needs

Axel Kullmann

Support

+46 (0)8 747 08 00 info@lotax.se

MOT7 – Miniatyr Optoelektronisk

MOT7 – Miniature Optoelectronic

ETA25PS – Programmerbar Givare

ETA25PS – Programmable Encoder

Only one sensor for different electrical rotating angles and an easy and accurate programming of start- and end position and senses of rotation.

ALIR17/ALIR19M Multiturn Wirewound Potentiometer

ALIR17/19xxM Multiturn Wirewound Potentiometer

Multi turn potentiometer with up to 10 turns, and IP65 (option)

CLP13 – Potentiometric Linear Transducer

CLP13 – Potentiometric Linear Transducer

Displacement sensor in space-saving design for 13 mm to 100 mm stroke

CLP21 – Potentiometric Linear Transducer

CLP21 – Potentiometric Linear Transducer

In the displacement sensor series CLP21 the mechanical detection of linear movement is done by a front guided push rod with accurate sleeve bearings.

EDCT with Integrated Electronics

EDCT with Integrated Electronics

For more comfortable electronic integration of inductive displacement sensors the economic EDCT series is realized.

ENS22F – Flange mount sensor SSI signal

ENS22F – Flange mount sensor SSI signal

The Series ENS22F closes the gap between potentiometric sensors and high end sensors with ball bearings.

ENS22K – Kit sensor SSI signal

ENS22K – Kit sensor SSI signal

The Hall-Effect Kit-Encoder Series ENA22K has an endless mechanical life expectancy because there is no bearing or wear.

ETS25

ETS25

Halleffect compact rotary encoder with serial interface, servo flange series, precision ball bearing and round connection cable.

HEM12 – Potentiometric Linear Transducer

HEM12 – Potentiometric Linear Transducer

In the displacement sensor series HEM12 the mechanical detection of linear movement is done by a magnetic drag.

HEM12E with Electronics – Potentiometric Linear Sensor

HEM12E with Electronics – Potentiometric Linear Sensor

In advancement of the standard HEM12 series the E-Version, HEM12E, is realized for better electronic integration.

HSM22M Hall-Effect Multi-Turn Rotary Encoder

HSM22M Hall-Effect Multi-Turn Rotary Encoder

True power-on multi-turn encoder in Ø22.5 mm metal housing detects angles up to 3600° (= 10 turns) absolutely reliable.

LHK – Contactless Hall-Effect Linear

LHK – Contactless Hall-Effect Linear

Magnetic linear transducer for 30 mm strokes is optimal for the detection of small, oscillating movements in automatically regulated systems

M101B – Optoelectronic Encoder

M101B – Optoelectronic Encoder

MAB12A – Hall-Effect Absolute Encoder

MAB12A – Hall-Effect Absolute Encoder

MAB12AH – Hall-Effect Absolute Encoder

MAB12AH – Hall-Effect Absolute Encoder

MAB22A – Hall-Effect Absolute Encoder

MAB22A – Hall-Effect Absolute Encoder

Halleffect compact rotary encoder with analog signal, servo flange series, precision ball bearing and round connection cable.

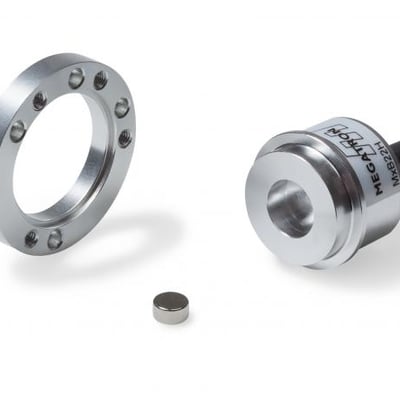

MAB22AH – Contactless Hall Effect Encoder

MAB22AH – Contactless Hall Effect Encoder

MAB22APM – Hall-Effect Multiturn Absolute Encoder

MAB22APM – Hall-Effect Multiturn Absolute Encoder

MAB28A – Hall-Effect Absolute Encoder

MAB28A – Hall-Effect Absolute Encoder

Hall-Effect Absolute Encoder with ball bearing and analogue output

MAB36A – Hall-Effect Absolute Encoder

MAB36A – Hall-Effect Absolute Encoder

MAB36APM – Hall-Effect Multiturn Absolute Encoder

MAB36APM – Hall-Effect Multiturn Absolute Encoder

MAB40A – Hall-Effect Absolute Encoder

MAB40A – Hall-Effect Absolute Encoder

Completely sealed encoder with analogue output and double ball bearings.

MAB40APM – Hall-Effect Multiturn Absolute Encoder

MAB40APM – Hall-Effect Multiturn Absolute Encoder

MCP05 – Conductive Plastic Potentiometer

MCP05 – Conductive Plastic Potentiometer

Miniature potentiometer 0,5 .. 100 kohm, in 13 mm housing, 2 mm shaft and long life time

MCP30 – Conductive Plastic Potentiometer

MCP30 – Conductive Plastic Potentiometer

Potentiometer 0,5 .. 100 kohm, 1,5 watt, high life time and extremly robust.

MCP40 – Conductive Plastic Potentiometer

MCP40 – Conductive Plastic Potentiometer

Potentiometer 0,5 .. 200 kohm, 2 watt, high life time and extremly robust.

MCP50 – Conductive Plastic Potentiometer

MCP50 – Conductive Plastic Potentiometer

Potentiometer 0,5 .. 500 kohm, 3 watt, high life time and extremly robust.

MHL40 – Optoelectronic Hollow Shaft

MHL40 – Optoelectronic Hollow Shaft

MI3001

MI3001

MIB28 – Incremental Hall-Effect Absolute Encoder

MIB28 – Incremental Hall-Effect Absolute Encoder

MIB36 – Incremental Hall-Effect Absolute Encoder

MIB36 – Incremental Hall-Effect Absolute Encoder

MIB40 – Incremental Hall-Effect Absolute Encoder

MIB40 – Incremental Hall-Effect Absolute Encoder

MM – Potentiometric Linear Transducer

MM – Potentiometric Linear Transducer

Compact double supported rod, measure10-30 mm

MM10 – Potentiometric Linear Transducer

MM10 – Potentiometric Linear Transducer

Compact double supported rod, measure 8-15 mm, also with spring return

MOL40 – Optoelectronic Encoder

MOL40 – Optoelectronic Encoder

MOM18 – Optoelectronic Encoder

MOM18 – Optoelectronic Encoder

MOT13 – Miniature Optoelectronic

MOT13 – Miniature Optoelectronic

MP10 – Conductive Plastic Potentiometer

MP10 – Conductive Plastic Potentiometer

MP1613 – Contactless Hall Effect Absolute Encoder

MP1613 – Contactless Hall Effect Absolute Encoder

MP1618 – Contactless Hall Effect Absolute Encoder

MP1618 – Contactless Hall Effect Absolute Encoder

MP20 – Conductive Plastic Potentiometer

MP20 – Conductive Plastic Potentiometer

MP20 without stop, free wheeling, potentiometer with high life span in moderate priceing.

MPAS20 – Conductive Plastic Potentiometer

MPAS20 – Conductive Plastic Potentiometer

Servo flange, 2 ball precisions bearings, Diameter 22 mm, without mech. stop

MSV – Incremental Linear Transducer

MSV – Incremental Linear Transducer (MS50)

TTL or Line Driver output in high resolution up to 5µm for 30 to 50 mm strokes

MSL38 – Potentiometric Linear Transducer

MSL38 – Potentiometric Linear Transducer

Displacement sensor for measuring distances from 100 mm to 2000 mm

MUP1300/1350 – Wirewound single turn potentiometer

MUP1300/1350 – Wirewound single turn potentiometer

Simple, low cost flat potentiometer

OMS2 – Magnetostrictive Linear Transducer

OMS2 – Magnetostrictive Linear Transducer

Magnetostrictive sensor series, a non-contact and low-profile sensor with very long lifespan, measuring up to 1500 mm

RC13 – Potentiometric Linear Transducer

RC13 – Potentiometric Linear Transducer

Compact displacement sensor for 25 to 250 mm stroke

RC20 – Potentiometric Linear Transducer

RC20 – Potentiometric Linear Transducer

Compact displacement sensor for 10 to 300 mm stroke, IP60/IP67

RC35 – Potentiometric Linear Transducer

RC35 – Potentiometric Linear Transducer

Compact displacement sensor for 50 to 750 mm stroke, up to IP67 (standard IP65)

RP20 – Wirewound single turn potentiometer

RP20 – Wirewound single turn potentiometer

High quality low cost potentiometer.

SPEH – Optoelectronic Kit-Encoder

SPEH – Optoelectronic Kit-Encoder

SPI18 - Potentiometric Linear Transducer

SPI18 - Potentiometric Linear Transducer

The SPI18 linear transducers are used in industrial applications which requiring a compact sensor with ball joints, long lifespan, high accuracy and a front guided push rod in measuring lengths from 25 to 200 mm. The SPI18 sensor is available with plug or cable connection.

SPR18 - Potentiometric Linear Transducer

SPR18 - Potentiometric Linear Transducer Spring return

linear sensor potentiometric conductive plastic

The SPR18 series is used in applications where a displacement sensor with spring-suspended probe is required. Measuring lengths from 25 to 100 mm.

MBX - Potentiometric linear transducer

MBX - Potentiometric linear transducer

The potentiometric linear transducer series MBX is extremely suitable for very limited space due to its extremely slim design. In addition, the universal cursor can be mechanically coupled in a flexible way. No push rod is required and additional space is saved in the customer's housing.

MBH - Potentiometric linear transducer

MBH - Potentiometric linear transducer

The Series MBH is used in applications that need a hermetically sealed sensor element. The sensor technology is based on an encapsulated foil potentiometer.

CH37 - Potentiometric linear position sensor

CH37 - Potentiometric linear position sensor

The CH37 series is used in compact hydraulic cylinders, which require a small displacement sensor with up to 340 bar.

MMS33 - Potentiometric Linear Transducer

MMS33 - Potentiometric Linear Transducer

The MMS33 linear transducers are used in heavy vibration applications that require a displacement sensor with long lifespan, high accuracy and front guided push rod in measuring lengths from 50 to 900 mm.

HEM16 - Potentiometric Linear Transducer

HEM16 - Potentiometric Linear Transducer

Very accurate displacement sensor for hydraulic applications up to 250 bar with protection IP67 for 50 to 1000 mm strokes

REM13 - Potentiometric Linear Transducer

REM13 - Potentiometric Linear Transducer

Compact displacement sensor in space-saving design for 20 bar operating pressure in protection class IP67 and external cursor.

CI18 - Potentiometric Linear Transducer

CI18 - Potentiometric Linear Transducer

Displacement sensor in compact 18x18 mm industrial design with front guided push rod and ball joint.
Do not use. Old typ model, we refer to SPI18

CR18 - Potentiometric Linear Transducer

CR18 - Potentiometric Linear Transducer

Displacement sensor in compact industrial design with spring-suspended probe tip or tip with roller bearing.

WGO - Potentiometric oil filled linear position sensor

WGO - Potentiometric oil filled linear position sensor

WGO20 - measuring length 50..200 mm
WGO40 - measuring length 100..500 mm

HMA2 - Magnetic position sensor

HMA2 - Magnetic position sensor

Magnetic position sensor with measuring strokes from 50..4000 mm. Designed for hydraulic applications with up to 350 bar.

IMS - Magnetic Linear Transducer

IMS - Magnetic Linear Transducer

Absolute linear transducer with very high accuracy, protection class IP67 and max. 500 bar peak.

EDC - Inductive Linear Transducer

EDC - Inductive Linear Transducer

Compact LVDT displacement sensor with integrated electronics in two designs for small measuring strokes.

EVT - Inductive Linear Transducer

EVT - Inductive Linear Transducer

Robust miniature displacement sensor for small measuring strokes in difficult environmental conditions (max. IP68 / pressure-tight up to 30 bar).

MDC - Inductive Linear Transducer

MDC - Inductive Linear Transducer

Robust and compact LVDT displacement sensor with integrated electronics in three designs.

MAC - Inductive Linear Transducer

MAC - Inductive Linear Transducer

Robust and compact LVDT displacement sensor in three designs.

RAC - Inductive displacement sensor

RAC - Inductive displacement sensor

Robust LVDT displacement sensor with AC voltage output in three designs with a wide temperature range and measuring lengths up to 940 mm.

MSO - Incremental Linear Transducer

MS30 - Incremental Linear Transducer (MS30)

Incremental linear transducer with high resolution up to 0,1 µm and output channels A, B, and inverted.

46 - Multiturn-Wirewound Potentiometer

46 - Multiturn-Wirewound Potentiometer

Potentiometer with up to 20 turns and power rating up to 10 W in 46 mm housing

MP22/23 - Conductive Plastic Potentiometer

MP22/23 - Conductive Plastic Potentiometer

Conductive Plastic Potentiometer Series MP22/23 with metal housing.

MPS20/21 - Conductive plastic potentiometer

MPS20/21 - Conductive plastic potentiometer

Compact servo flange precision potentiometer with high durability and accuracy in 22 mm housing with precision ball bearings and radial connections.

RP22/23 - Wirewound potentiometer

RP22/23 - Wirewound potentiometer

Compact and very accurate potentiometer in 22 mm rugged metal housing. RP22 with high electrically effective rotation angle. RP23 with end stop.

SFCP22 - Conductive plastic potentiometer

SFCP22 - Conductive plastic potentiometer

Robust servo flange potentiometer in 22 mm metal housing with very long lifespan.

MOT6 - Miniature incremental encoder

MOT6 - Miniature incremental encoder

Incremental encoder in very compact Ø6 mm housing and high resolution for use in miniaturized devices.

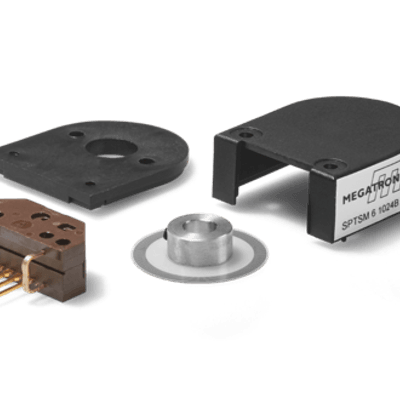

SPTSM - Optical incremental encoder as kit encoder

SPTSM - Optical incremental encoder as kit encoder

Reliable and easy-to-install optoelectronic kit encoder with long lifespan and adaptability to the application.

MOE18 - Optoelectronic encoder

MOE18 - Optoelectronic encoder

Incremental encoder with sinus signal in robust miniature design for small mechanisms.

MAB28 - Hall-Effect Absolute Encoder

MAB28 - Hall-Effect Absolute Encoder

OBSOLET

Encoder with different serial interfaces and ball bearings.

CFL - Potentiometric Linear Transducer

CFL - Potentiometric Linear Transducer

linear sensor potentiometric conductive plastic

The CFL series is used in XY-applications. Measuring lengths from 100 to 1000 mm.

PMS2 - Magnetic Linear Transducer

PMS2 - Magnetic Linear Transducer

Magnetic absolute displacement sensor without push rod with very high accuracy in IP67 for measuring strokes up to 4000 mm.

MHU60

MHU60-25 puls/100 puls

The manual encoder MHU60 is with its small installation depth of 10 mm very space saving.

MHO

MHO-25 puls/100 puls

The manual handwheel MHO is a very robust product with an installation depth of 27 mm.

MRXC(T)50

MRXC(T)50

The space-saving and well-priced encoder offers a high resolution and a smooth detent for manual operation.

MRS – Panelgivare

MRS – PC Board, Land, Board-In-Stecker

A space-saving encoder used as a manual setpoint device, with push button

MRB – Panelgivare

MRB – PC Board

The space-saving and well-priced encoder is used as a manual setpoint device.

MP11 – Conductive Plastic Potentiometer

MP11 – Conductive Plastic Potentiometer

Miniture rotary potentiometer in 13 mm housing and 3,00 mm shaft

RP19 – Trådlindad single turn potentiometer

RP19 – Wirewound single turn potentiometer

Diameter 22 with narrow mounting depth, from 10 Ω to 20 kΩ

AL17/AL19 Multiturn Wirewound Potentiometer

AL17/AL19 Multiturn Wirewound Potentiometer

potentiometer

A multiturn potentiometer with high precision in 22 mm housing option slipping clutch

MP21 – Conductive Plastic Potentiometer

MP21 – Conductive Plastic Potentiometer

High quality potentiometer in good price range.

ETA25 Manuell panelgivare

ETA25 Manuel setting device

Hall effect panel encoder ETAM25 with analogue interface

SPE manual encoder

SPE manual encoder

Panel encoder Ø22, increased torque, 1000 ppr

SPM - Optical incremental encoder

SPM - Optical incremental encoder

Reliable optical incremental encoders with increased (SPM) and reduced torque (SPNTM) with good adaptability to the application.

MPA20/MPA21

MPA20/MPA21 - Conductive plastic

Potentiometer in 22 mm housing, with or without endstop

Lotax AB
Sickla Industriväg 3, SE - 131 54 NACKA
+46 8 747 08 00
info@lotax.se

Alla rättigheter © Lotax AB

Webbyrå Bloom Stockholm
