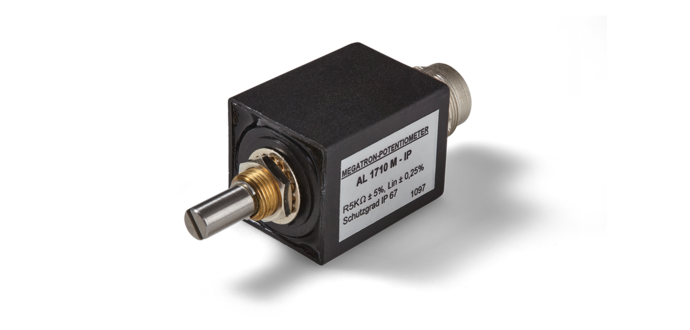

AL17/AL19 Multiturn Wirewound Potentiometer
A multiturn potentiometer with high precision in 22 mm housing option slipping clutch
Special Features
- 6,00 mm or 6,35 mm shaft diameter
- 22 mm housing diameter
- Resistance value from 100 Ohm to 100 kOhm
- Linearity tolerance ±0,25% (±0,1%)
- Optional multi ganged versions (tandem)
- Optional sealing ring in the bushing (IP65)
- Slipping clutch optional

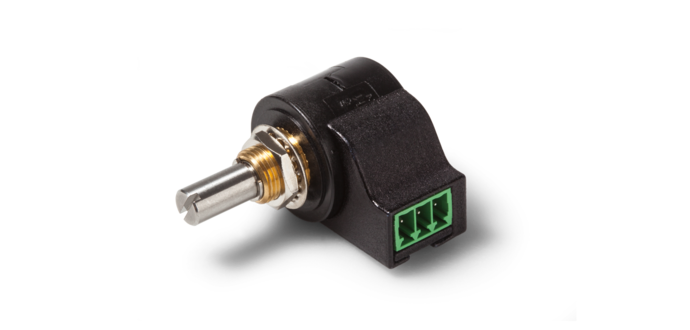

- Connector optional
Facts Fakta
Resolution | Infinite |
Electric Angle | max. 3600° |
Measurement Range | Multiturn |
Output Signal | Analog |
Protection Class | Up to IP65 |
Technology | Wirewound Multiturn Potentiometric |
Documents Dokument
Data sheet AL17/19.pdf |
CAD files AL17/19 download |
