CLP13 – Potentiometric Linear Transducer
Displacement sensor in space-saving design for 13 mm to 100 mm stroke
Special Features
- Economic and proved potentiometer technology with conductive plastic
- Space-saving design with small dimensions and frontside push rod

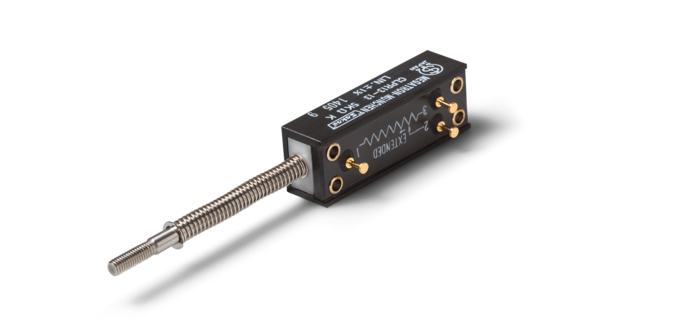

- Also available with spring return probe
- Long life time
- High accuracy because of high resolution and a good linearity
- True power on analog signal without delay
- Robust against temperature influence or EMC troubles
Facts Fakta
| Electrical Travel | 13 mm to 100 mm in 4 variants |
| Housing | Rectangular profile |
| Profile Dimension | 11 x 13 mm |
| Technology | Potentiometric |
| Protection Class | IP40; on request IP54 |
| Design | Front side rod with/without spring return |
| Resolution | Infinite |
Documents Dokument
| Data sheet CLP13.pdf |
| CAD files CLP13 |
