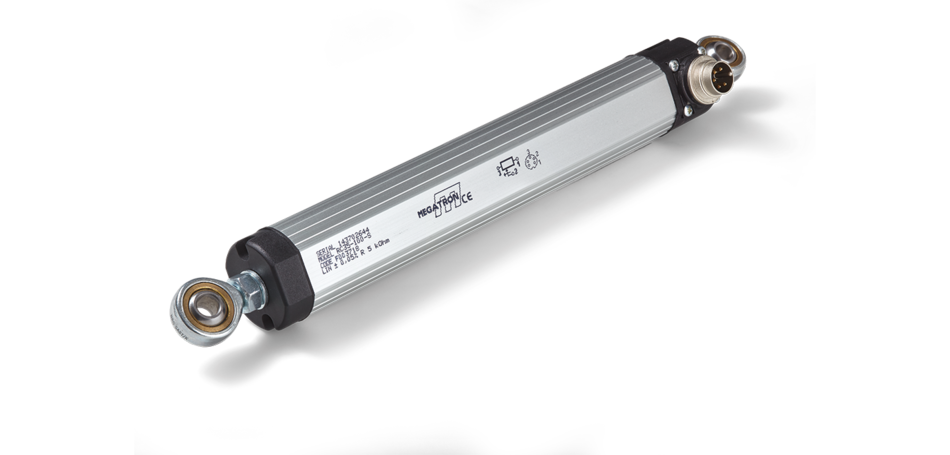

RC35 – Potentiometric Linear Transducer
Compact displacement sensor for 50 to 750 mm stroke, up to IP67 (standard IP65)
Special Features
- Economically and proved potentiometer technology with conductive plastic
- Robust design, IP65 protected
- Front and rear ball joints for easy integration
- Long life time
- High accuracy because of high resolution and good linearity
- True power on signal without delay
- Robust against temperature influence or EMC troubles
Facts Fakta
| Electrical Travel | From 50 to 750 mm in 16 variants |
| Housing | Cylindrical profile |
| Profile Dimension | Ø35 mm |
| Technology | Potentiometric |

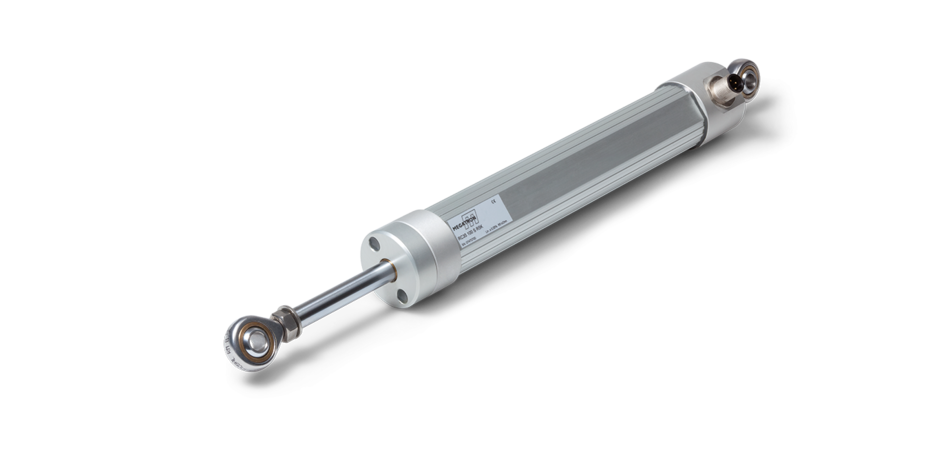

| Protection Class | IP65 (optional IP67) |
| Design | Frontside rod without spring return |
| Resolution | Infinite |
Documents Dokument
| Data sheet RC35.pdf |
| CAD files RC35 IP67 download |
| CAD files RC35 IP65 download |
