RC20 – Potentiometric Linear Transducer
Compact displacement sensor for 10 to 300 mm stroke, IP60/IP67
Special Features
- Economic and proved potentiometer technology with conductive plastic
- Robust housing in anodized aluminium

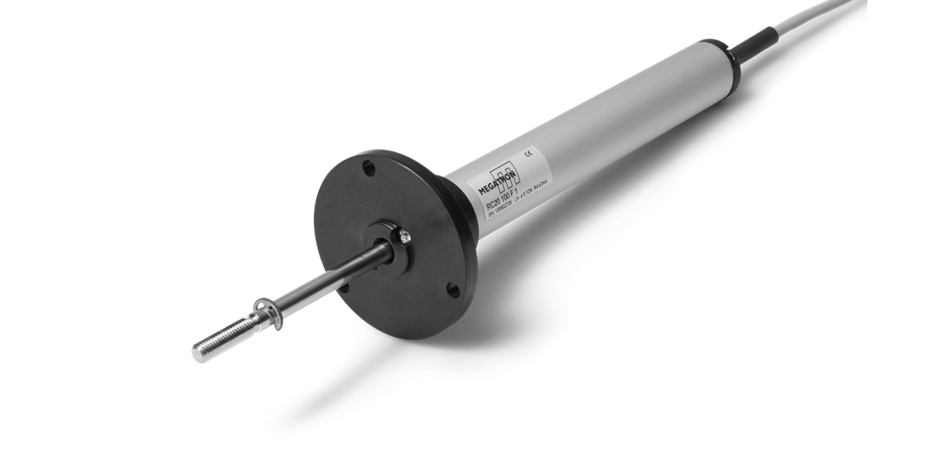

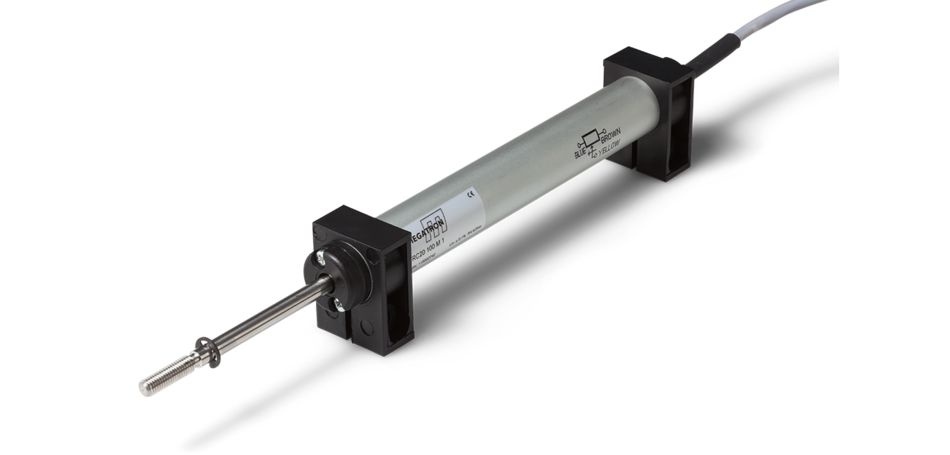

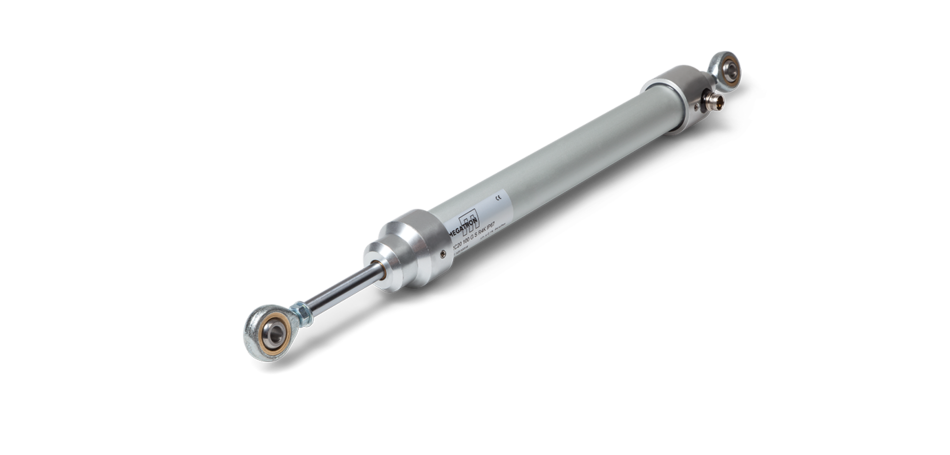

- Mounting by flange, ball joint or mounting brackets
- Long life time
- High accuracy because of high resolution and a good linearity
- True power on signal without delay
- Robust against temperature influence or EMC troubles
Facts Fakta
| Electrical Travel | From 25 to 300 mm in 10 variants |
| Housing | Cylindrical anodized aluminium profile |
| Profile Dimension | Ø20 mm |
| Technology | Potentiometric |
| Protection Class | IP60/IP67 |
| Design | Front side rod without spring return |
| Resolution | Infinite |
Documents Dokument
| Data sheet RC20.pdf |
| CAD files RC20 - IP60 |
| CAD files RC20 - IP67 |
