Stepper Motors with Encoder
Stepper Motors with encoder for closed loop drive.
Hybrid stepper with encoder for more precise movemont,see also the IP65 stepper motors who also have with encoder.
Below variants have all optical encoder, 2-channel, 1000 ppr.
| Type | Size x Length [mm] | Current/Phase [Amp] | Resistance [Ohm] | Holding Torque [Nm] | Step Angle [°] | ||
|---|---|---|---|---|---|---|---|
 |
SM42 |
|
42x54
42x6042x68 42x80 |
1,3 1,7 1,7 3,0 |
2,10 1,65 1,65 1,20 |
0,22 0,36 0,44 0,80 |
1,8 |
|

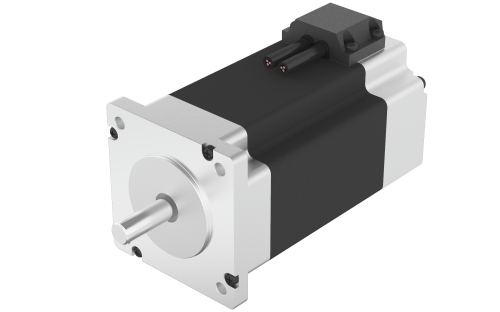

SM60 |
|
60x66 60x75 60x86 60x107 |
2,8 2,8 2,8 2,8 |
0,75 1,00 1,20 1,50 |
1,1 1,65 2,1 3,1 |
1,8 |
|

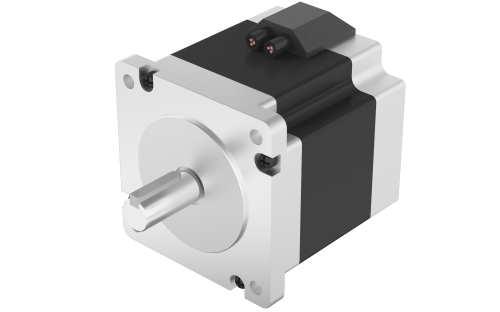

SM86 |
|
86x84,5 86x97 86x115 86x133 86x172 |
6,0 5,5 5,5 6,0 6,2 |
0,30 0,40 0,50 0,55 0,70 |
3,4 4,6 7,0 8,7 12,1 |
1,8 |
Documents Dokument
| 2D drawing example - mail for more info (zip 0,103 kB) |
Kontakta vår support så hjälper vi dig! Contact our support for advice!
