Stepper Motors IP65
More torque for your application. IP65-protected. With and without encoder.
Hybrid IP65 stepper motors are designed for harsh operating environments. These IP65 protection class stepper motors are completely dustproof and guarantee protection against water projections and low-pressure jets of water. Our IP65 stepper motor range offers sizes from 28 to 57mm with 1,8° step angle.
We recommend Binder Connector for cable with M-connetor attached, which we also can provide.
| Type | Size x Length [mm] | Current/Phase [Amp] | Resistance [Ohm] | Holding Torque [Nm] | Step Angle [°] | ||
|---|---|---|---|---|---|---|---|
 |

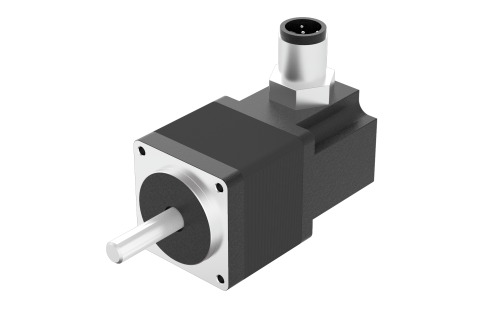

SM28-IP |
|
28x51 28x70 |
0,67 0,67 |
5,6 9,2 |
0,071 0,127 |
1,8 |
|
SM42-IP |
|
42x97 42x115 42x127 |
1,8 1,8 1,8 |
0,86 1,52 2,00 |
0,16 0,48 0,72 |
1,8 |
|

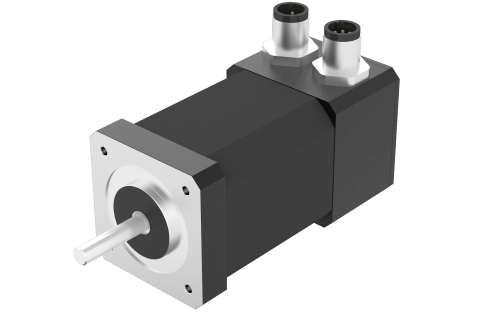

SM42-E-IP |
|
42x97 42x115 42x127 |
1,8 1,8 1,8 |
0,86 1,52 2,00 |
0,16 0,48 0,72 |
1,8 |
|

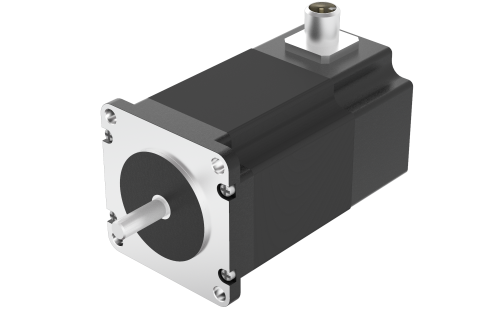

SM57-IP |
|
57x101 57x112 57x136 |
2,8 2,8 2,8 |
0,57 0,90 1,10 |
0,70 1,24 1,95 |
1,8 |
|

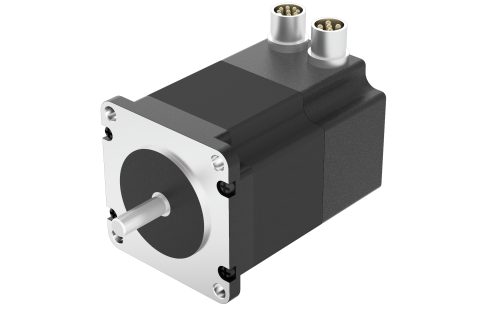

SM57-E-IP |
|
57x70 57x94 |
4,2 4,2 |
0,40 |
1,20 2,20 |
1,8 |
Documents Dokument
| 2D drawing example - mail for more info (zip 0,176kB) |
