Stepper Motors 3-Phase
More silent drive with 3-phase stepper!
3-Phase hybrid stepper motor technology is used mainly where ultra-low vibration and very low noise levels are required. The use of three phases enables smooth and precise motor movement. Our 3-phase stepper motor range offers sizes from 42 to 60mm with 1,2° step angle.
| Typ | Storlek x längd [mm] | Fasström [Amp.] | Resistans [Ohm] | Håll-moment [Nm] | Stegvinkel [°] | ||
|---|---|---|---|---|---|---|---|
 |

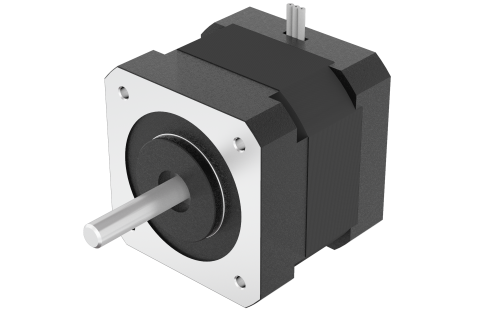

423P24 |
|
42x24 42x39 |
0,90 2,40 |
6,2 1,2 |
0,08 0,20 |
1,2 |
|
573P42 |
|
57x42 57x56 57x56 |
5,2 5,6 5,8 |
1,30 0,70 1,05 |
0,45 0,90 1,50 |
1,2 |
|

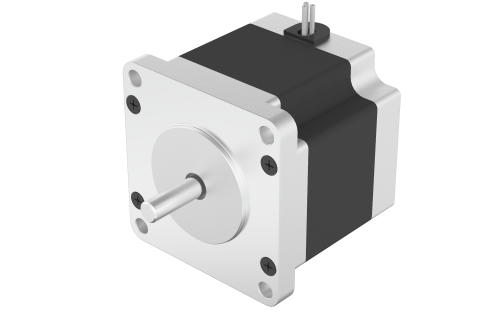

603P53 |
|
60x53,5 | 1,5 | 4,5 | 0,90 | 1,2 |
Documents Dokument
| CAD file All 3-phase stepper.zip (1,5 MB) |
Kontakta vår support så hjälper vi dig! Contact our support for advice!
