Planetary Gear PM62

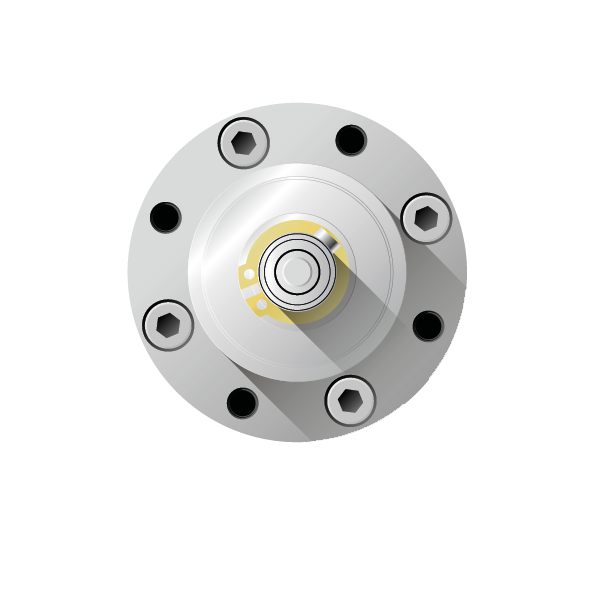

Planetary gear PM62 for DC-motor Bühler Ø63 mm, red. 3,7:1 to 169:1
The planetary gear is used when high reduction in a small size is needed. It is also often a natural choice when there is a high torque in the application, and one wishes the motor to be in line with the gear box.bMotion logo black

Facts Fakta

Reduction 1-stage3,7:1
Torque [Ncm]800 Ncm
Reduction 2-stage14:1, 19:1, 25:1
Torque [Ncm]2500 Ncm
Reduction 3-stage51:1, 71:1, 100:1, 130:1, 169:1
Torque [Ncm]5000 Ncm

Documents Dokument

Planetary gear PM62
