KT703 0..200 N to 0..1000 N

Compact force sensor with integrated digital measuring amplifier and aluminum measuring body for measuring ranges up to 1 kN.

The KT703 force transducers are characterized in particular by their compact design, although they have an integrated digital measuring amplifier which delivers output signals of 0..10 V, 4..20 mA @ 24 VSUP. The force is introduced via the M5 internal thread for measuring ranges up to 1 kN for compressive or tensile forces.

Special Features

  • Aluminium load cell
  • Compact design
  • Calibration with test certificate

Facts Fakta

Nominal LoadFrom 0..200 N to 0..1 kN
Output Signal0..10 V, 4..20 mA
OutputWith Digital Amplifier
Direction of ForceTension and Compression
DesignShear Beam
Protection ClassIP40

Documents Dokument

Data sheet KT703.pdf
CAD file KT703 download
Axel Kullmann

Kontakta vår support så hjälper vi dig! Contact our support for advice!

Vi kan besvara era frågor och berätta hur produkterna kan anpassas efter era precisa behov We can answer your questions and describe how our products can be modified to fit your exact needs

Axel Kullmann
Support
+46 (0)8 747 08 00 info@lotax.se

Liknande produkter Related products

Knappcell KMB32 8 kN

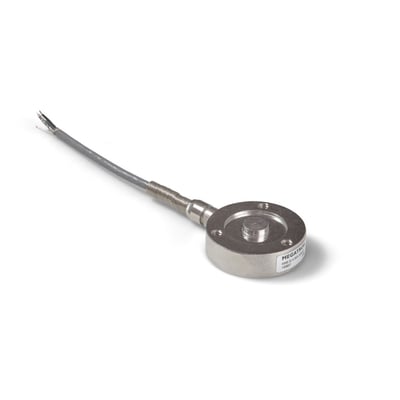

Button Load Cell KMB32, 8 kN

Series KMB32 force transducers are miniature sensors, especially designed for application with less space.
